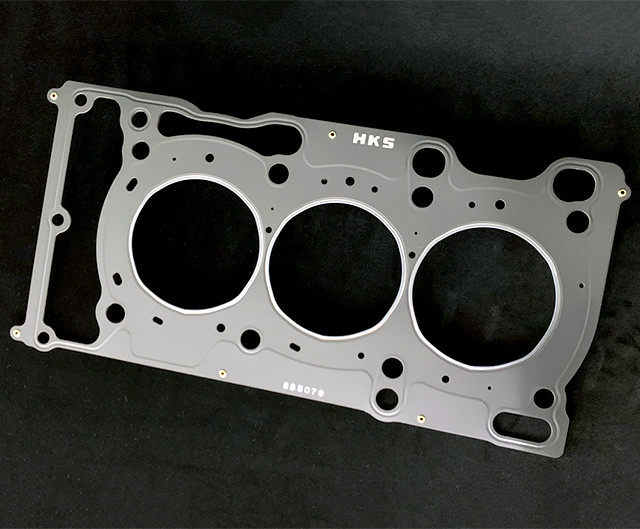

HKS Grommet Type Head Gasket for the GR Corolla 2023+
This is a grommet-type gasket that can be used if the boost is further increased in the G16E-GTS shared by the GR YARIS & GR COROLLA.
Originally released for GR Yaris.
Improves the sealing limit by securing the surface pressure of the gasket sealing surface by employing the grommet structure.

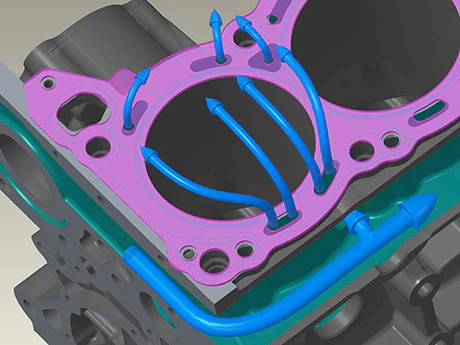

The gasket puts the shims at either end of the engine deck to apply the load evenly when tightening the head bolt to prevent the distortion of the cylinder head.
Code No:23002-AT003
Compression Ratio:10.6
Thickness: 0.8mm
Stock Thickness: 0.85mm
Bore Diameter: 89 (not round)
Engine
Thickness(mm)
Compression Ratio
Bore
Code No.
Manual
Remarks
G16E-GTS
0.8
ε=10.6
Dia. 89 (not round)
23002-AT003
Stock thickness t=0.85
Вказано ціну виробника (рекомендована роздрібна ціна в USD). Ми — дилер: підтвердимо актуальну ціну, наявність і строк поставки під час замовлення.
| Артикул | 23002-AT003 |
| Виробник | HKS |
| Сумісність | GR Corolla 2023+ |
