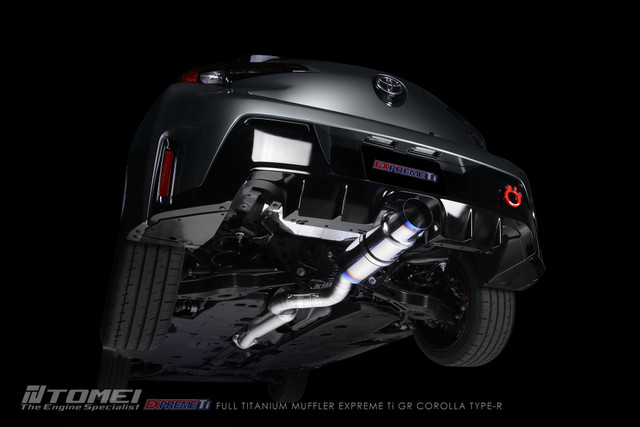

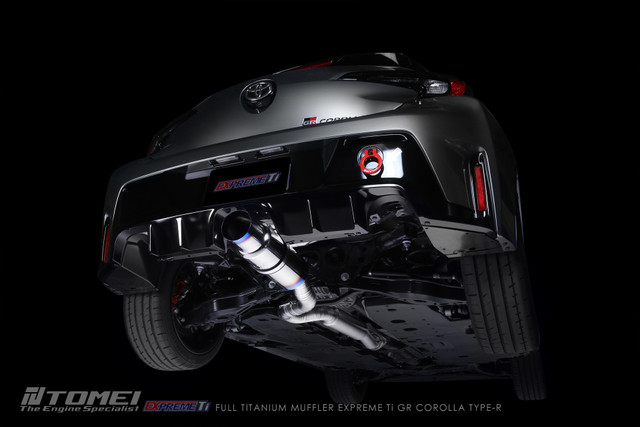

TOMEI FULL TITANIUM EXPREME Ti TYPE-R (SINGLE) For the GR Corolla 2023+
GR Performance Parts an authorized Tomei dealer, is excited to announce the latest release for the GR Corolla. The Tomei Full Titanium Expreme Ti Type R (Single Exit) exhaust!
Tomei Powered USA Inc., established in October 2006, is an automotive performance tuning parts manufacturer based in Lake Forest, California. The company is 100% owned and operated by Axesta Inc., headquartered in Zama, Kanagawa Prefecture, in Japan. At the Japanese headquarters, all product development and control of manufacturing for the TOMEI brand are carried out.
FULL TITANIUM MUFFLER SPECIFICATION
TOMEI
OEM
TYPE-R
TYPE-D
PART No.
TB6090-TY07A
TB6090-TY07B
-
MATERIAL
TITANIUM
-
MAIN PIPEDIAMETER
Φ80.5mm[3.17inch]
Φ80.5mm[3.17inch]
Φ70.0mm-Φ64.3ｍｍ[2.76inch-2.53inch]
MAIN PIPETHICKNESS
1.0mm
SUB SILENCERDIAMETER
Φ152.0mm[5.9inch]
Φ152.0mm[5.9inch]
Φ217.6mm[8.57inch]
SUB SILENCERTHICKNESS
1.0mm
SILENCERDIAMETER
Φ119.0mm[4.69inch]
Φ119.0mm[4.69inch]
Φ120.3mm[4.74inch]
SILENCERTHICKNESS
1.0mm
EXITDIAMETER
Φ115.0mm[4.53inch]
Φ115.0mm[4.53inch]
Φ86.14mm*2 Φ164.3mm*1[3.39inch*2 6.47inch*1]
EXITTHICKNESS
1.0mm
FLANGETHICKNESS
2.0mm
3.0mm
WEIGHT
6.5kg[14.4lbs]
9.95kg[22lbs]
14.75kg[32.6lbs]
SOUND LEVELS Tested @4200rpm
Only muffler installed.
TYPE-R
TYPE-D
withSoundReducer Ver.2
82db
84db
withSoundReducer
89db
90db
withoutSoundReducer
93db
94db

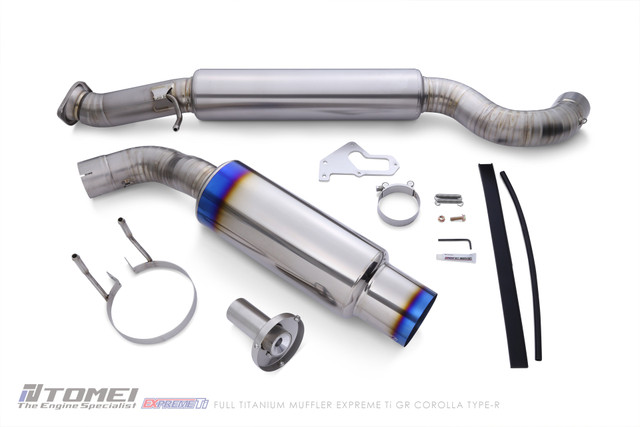

COMPLETE KIT
This kit includes all the components necessary for installation including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts becoming seized under heat.
Вказано ціну виробника (рекомендована роздрібна ціна в USD). Ми — дилер: підтвердимо актуальну ціну, наявність і строк поставки під час замовлення.
| Артикул | TB6090-TY07A |
| Виробник | Tomei |
| Сумісність | GR Corolla 2023+ |
