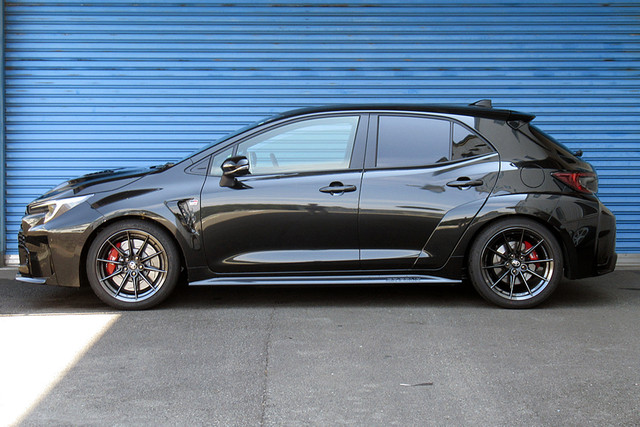

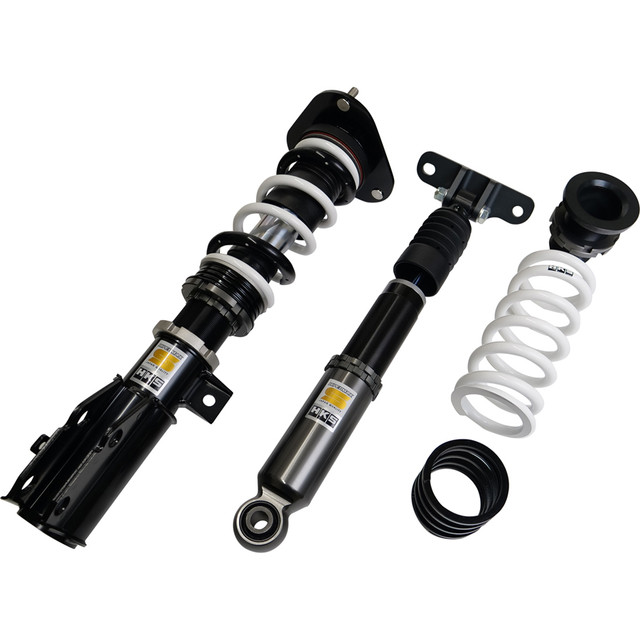

HKS HIPERMAX S Coilover Kit for the GR Corolla 2023+
Going beyond just ride comfort or handling performance, a new standard of "Driving Comfort" aims for comfort in ride but also in the peace of mind generated by handling performance and drivability . An uncompromising balance which delivers on all the demands of street driving.
The popular HIPERMAX S is now available for GR COROLLA.
We have improved the everyday ride comfort while retaining the excellent running performance of the factory suspension, in pursuit of superior driving comfort.
The vehicle height has been set to provide both a stylish appearance and a comfortable ride.
It has the versatility to cover various occasions like daily commuting or weekend drives.
The product has a 3-year warranty and is available for an overhaul. We have achieved high durability by reviewing the internal parts.
We also provide after-sales support. You can use the product for a long time.
Application
Engine
G16E-GTS
Model Year
22/12 -
Remarks
Specification
FRONT
REAR
Damping force adjustment
30 steps
30 steps
Base valve
-
-
Height adjustable lower bracket
〇
〇
Upper mount
Rubber
Rubber
Inverted/Normal type
Inverted
Normal
Damper/Spring layout
Coilover
Separated
Spring rate change at factory
Impossible
Possible
Damping force adjustment with wire
-
-
Helper spring(Spring rate N/mm)
〇 (7.6)
〇 (19.8)
Ride Height (mm)
Factory *2
Test data
Adjustable rangeHigh - Low *3
Drivable rangeHigh - Low *4
FRONT
Ride height *1
658
←
675 ～ 621
675 ～ 623
Against stock
-14
←
3 ～ -51
3 ～ -49
REAR
Ride height *1
666
←
698 ～ 621
698 ～ 633
Against stock
-25
←
7 ～ -70
7 ～ -58
*1. Height from road surface to fender arch.*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)*3. Adjustable range (However, the lowest value may not be road legal.Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)Caution). Actual data depends on each vehicle.
Kit information
Spring of Full Kit
F
R
Spring rate N/mm(kgf/mm)
69 ( 7.0 )
88 ( 9.0 )
Free height (mm)
200
200
Spring type
Straight Barrel type
Straight
Recommended range to change spring rate N/mm(kgf/mm)
-
±10 ( 1 )
Specification of damper
F
R
Damping force (Rebound/Damping)N*
608 / 564
761 / 603
Default position of dial
15
15
Remaining damper stroke (Rebound/Damping)mm
55 / 45
54 / 50
* The value of the damping force is at piston speed of 0.1m/sec.
Setting data
F
R
Default
Test
Drivable limitHigh *
Drivable limitLow *
Default
Test
Drivable limitHigh *
Drivable limitLow *
Length ofcase (mm)
317
←
319
297
305
←
330
270
SpringSet length(mm)
228
←
213
243
-
-
-
-
Length to ride hightadjuster (mm)
36
←
53
1
58
←
81
25
Lever ratio
1
1.40(spg) , 1.27(dmp)
* Refer to the above explanation *3 of ride height information for drivable high and low limitations.
Test vehicle information
F
R
Vehicle weight kg
861 (880)
606 (590)
Tire size (Air pressure) kPa
235 / 40 - 18 ( 240 )
235 / 40 - 18 ( 230 )
Wheel size
8.5 JJ × 18 inset 30
8.5 JJ × 18 inset 30
Alignment(Toe/Camber)
Test data
0 mm / -2°50'
'0 mm / -2°30'
Standard value
0 ± 2 mm / -1°39' ± 0°45'
in 1 ± 2 mm / -2°07' ± 0°45'
* Test data at HKS.
Parts List * It may be changed without prior notice.
Указана цена производителя (рекомендованная розничная цена в USD). Мы — дилер: подтвердим актуальную цену, наличие и срок поставки при заказе.
| Артикул | 80300-AT030 |
| Производитель | HKS |
| Совместимость | GR Corolla 2023+ |
