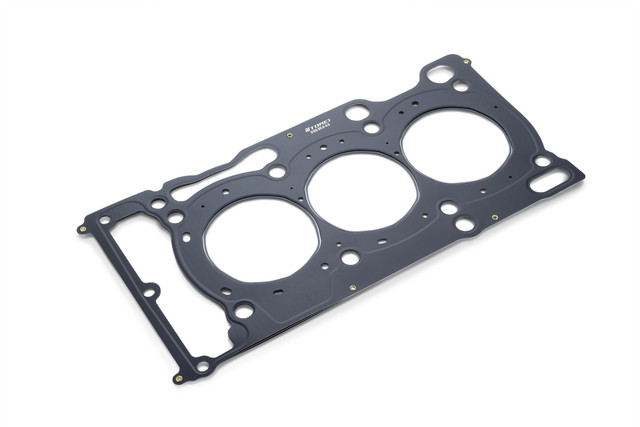

Tomei Head Gasket MLS Head Gasket for the GR Corolla 2023+ (G16E-GTS)

GR Performance Parts is an listed authorized Tomei Dealer.
We are excited to announce the latest from the Tomei Engine Specialists Program. The MLS G16 head gasket with multiple thickness options for your machining & compression ratio needs.
Item Description
BORE
THICKNESS
PART NO.
MATERIAL
Φ89.0
0.6mm
TA4070-TY07A
Metal
0.8mm
TA4070-TY07B
0.8mm
TA4070-TY07C
CROSS SECTION
0.6mm
0.8mm
1.0mm
*Images are for illustration purposes only.
BEAD TYPE
RAISED TYPE
SEAL TYPE
STOPPER TYPE
■ULTRA DURABLE, HIGH PERFORMANCE HEAD GASKETS■HIGHLY OPTIMIZED, ENGINE SPECIFIC CONSTRUCTION■MADE USING PREMIUM GRADE MATERIALS AND COATINGS■PRECISION WATER/OIL ROUTE SEALS■MULTIPLE THICKNESSES FOR CR ADJUSTMENT
COMPARISON WITH OEM(KA24DE)
OEM GASKETLess resistant to high temperatures and comparatively inferior sealing properties. Will easily 'blow' with tuning or under load.
TOMEI GASKETHighly resistant to heat and extremely durable.Superior sealing that can withstand high power applications.
Highly durable combustion chamber seals: Withstands high power/boost/temperature applications.Precision water & oil route seals: Ensures a steady circulation of engine fluids.
SEALING TEST （2JZ-G(T)E, HEAD SIDE）
SEALING TEST （2JZ-G(T)E, BLOCK SIDE）
HEAD SIDE
BLOCK SIDE
Thicker seals around the bore keeps pressurized gasses within the combustion chamber.Thicker bore seals usually results in weaker seals around the oil and water routes. However, TOMEI USA gaskets have been specially designed to distributed pressure evenly in order to maintain a high quality seal across the entire surface.
Engine specific gasket construction ensures optimal performance & least stress on block/head.
RAISED BEADSSTOPPER TYPE
FLAT BEADSCROMMET TYPE
OPPOSING BEADSDOUBLE-STOPPER TYPE
OPPSING BEADSSTOPPER TYPE
MULTI BEADSSTOPPER&SHIM TYPE
BEADS TYPES
RAISED
RECESSED
FLAT
SEAL TYPE
STOPPER (TOP SIDE)
GROMMET(TOPE SIDE)
STOPPER & SHIM
STOPPER (UNDER SIDE)
GROMMET (UNDER SIDE)
MATERIAL & COATING
STAINLESS STEELStainless steel is used across all our high performance gaskets. Robust and resistant to high temperatures,stainless steel facilitates efficient transfer of heat from the combustion chamber to the cylinder block. In addition, it's flexible nature further strengthens the seal made by the spring-like beads which helps prevent issues such as blown gaskets and melted cylinder blocks.
UNIQUE RUBBER COATINGBoth the top and bottom layers of the gaskets are coated in a specially developed unique rubber coating that reinforces the seal and contact with the head/block surfaces.

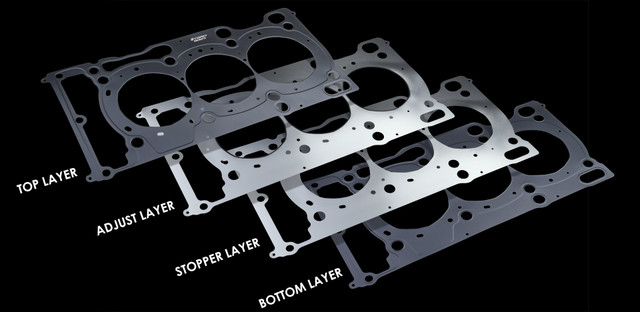

MULTI-LAYER CONSTRUCTION FOR MULTIPLE THICKNESSES
Adjustment layers of various thicknesses are combined to offer a diverse range of gaskets in a multitude of thicknesses.
A diverse range of specifications for precise compression ratio adjustments

Указана цена производителя (рекомендованная розничная цена в USD). Мы — дилер: подтвердим актуальную цену, наличие и срок поставки при заказе.

Производитель	Tomei
Совместимость	GR Corolla 2023+ (G16E-GTS)
