AGM

AGM Jack Mounts

By far, the easiest way to mount your Jacks! AGM has a wide range of choices for mounting your manual or electric jack to your vehicle.

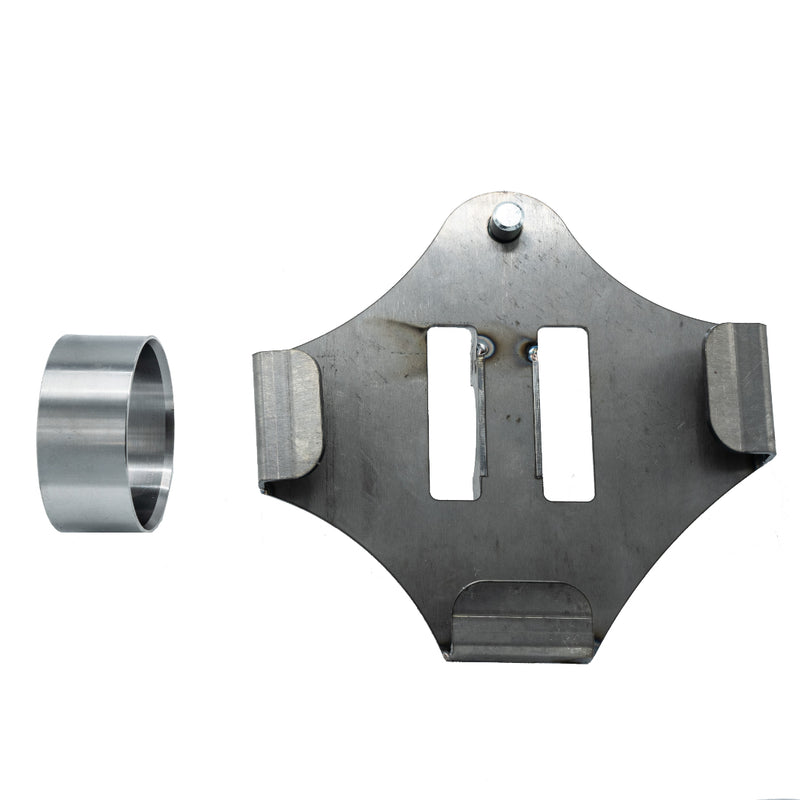

Weld-On Race Mount Kit:
• Weld-on chassis mounts are made of interlocking 4130 tabs and tubes
• Lower mount comes ready to install on 1.5” tubing. (The lower mount has guide marks to sand out to 1.75” or 2.0” tubing if needed).
•
Weld top mount directly to the chassis or set your own height with stand-off tubes/plates.

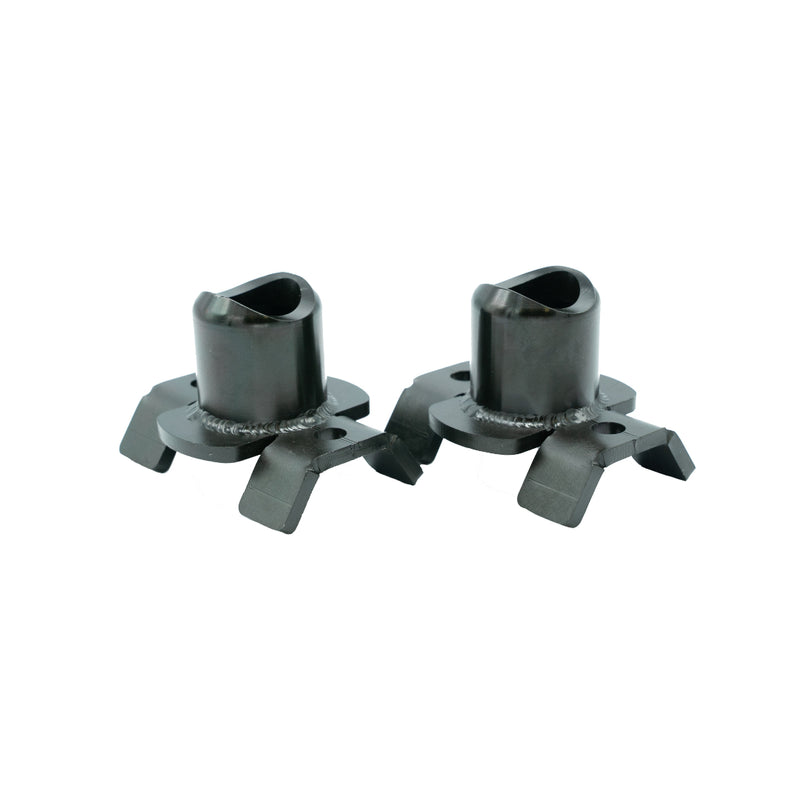

Weld-On Chassis Mount Kit Universal:

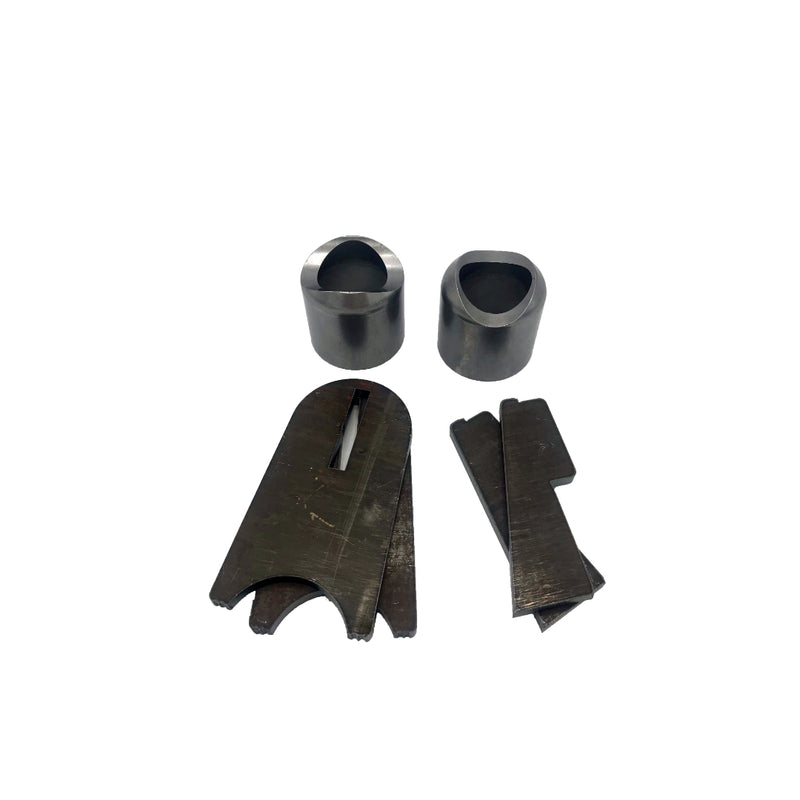

• Weld-on chassis mounts (2 per kit) are made of interlocking 4130 tabs and tubes
• The tube centers on the assembled tabs, which come ready to install on 1.5” tubing and have guide marks on each leg if you would like to sand out to fit 1.75” or 2.0” tubing
• Both mounts are identical; therefore, it is compatible with the Manual and the Electric Jack
•
Please Note: When welding together, take care to clock the tubes so that the jack will index into the mounts in the orientation you desire .
INSTRUCTIONS
How to Mount AGM Jack

The price shown is the manufacturer price (recommended retail price in USD). We are a dealer: we will confirm the current price, availability and lead time when you order.

Manufacturer	AGM
Vehicle type	SxS (UTV)
Fits	Can Am, Honda, Kawasaki, Polaris, Segway
Models	Defender 1000, Defender HD10, Defender HD7, Defender HD8, Defender HD9, General, Maverick 1000, Maverick 1000 Turbo, Maverick R, Maverick R MAX, Maverick Trail 1000, Maverick X3 900 HO, Maverick X3 Turbo 120 HP, Maverick X3 Turbo 135 HP, Maverick X3 Turbo 154 HP, Maverick X3 Turbo R 172 HP, Maverick X3 Turbo RR 195 HP, Maverick X3 Turbo RR 200 HP, RS1 1000, RZR Pro R, RZR Pro XP 181 HP, RZR S 1000, RZR Turbo R, RZR X…
Model years	2011–2026
