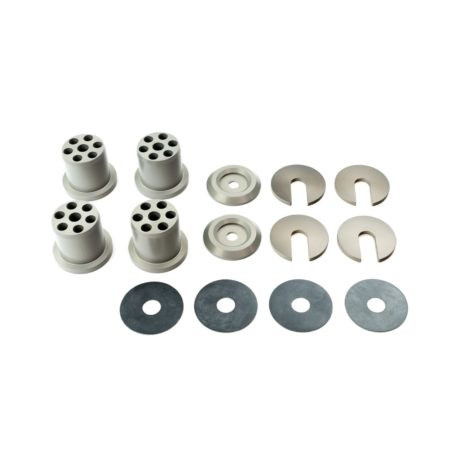

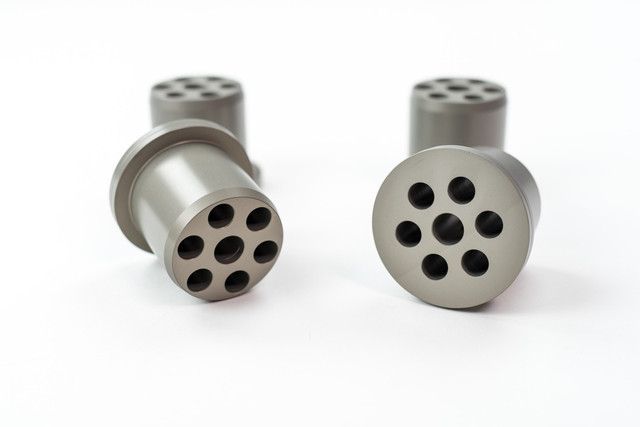

Voodoo13 Adjustable Solid Subframe Bushings for the 86 / BRZ 2013+
Toyota 86 adjustable aluminum subframe bushings are designed to rid subframe to chassis play by eliminating the soft OEM rubber bushings. Solid subframe bushings are a sure way to reduce unwanted wheel hop as well as maintaining set suspension geometry. Unlike the competition, our subframe bushings feature a unique deep angle chamfer in the center to lessen the difficulty of the subframe re-installation to the chassis. Instead of re-using the rear factory finishing caps like other companies, Voodoo13 provides our own laser engraved finishing caps to add to the aesthetics to an otherwise bland part of the car. The front subframe mounts use a beveled ring to utilize the factory subframe braces. Slide-in shims allow quick subframe adjustment without removal, to either raise or lower the mounting points. Lowering the subframe with decrease anti-squat while simultaneously increasing the roll-couple, while raising the subframe will correct roll center on a lowered car while increasing anti-squat.
Features:
6mm increments of roll center and anti-squat adjustment
CNC machined aerospace grade aluminum
Optional EPDM isolation washers will reduce NVH (noise, vibration, harshness) commonly caused by solid subframe bushings
Unique design for aesthetics and 100% functionality
The price shown is the manufacturer price (recommended retail price in USD). We are a dealer: we will confirm the current price, availability and lead time when you order.
| SKU | SBSC-0100 |
| Manufacturer | Voodoo13 |
| Fits | 86 / BRZ 2013+ |
